KLIX ceiling radiators

For offices, commercial buildings and industrial halls

KLIX ceiling radiators

Application examples

Possible applications for installation heights from 2.5m to 20m:

  • Production halls
  • Workshops
  • Sports halls
  • Offices
  • Flats/lofts
  • Hotels
  • Hospitals
  • Restaurants
  • Foyers
  • Livestock facilities

Special colours

Special colours of up to six metres are possible on request at an extra charge and after agreement of the delivery time.

Do you have a question?

Silvia Kleinschmidt
Technical Account Manager
Sales of Klix ceiling radiators

Property planning and technical design with Klix ceiling radiators for heating, cooling, ventilation
Eurasia

Phone: +49 7424 981 99-14
Fax: +49 7424 981 99-10
Mobile: +49 175 292 4861
silvia.kleinschmidt@allfest.de

Advantages over existing systems

Klix ceiling radiators

Ceiling radiant panels or gas radiators

Characteristics

  • Radial heat radiation on all encompassing surfaces
  • Low intensity on people
  • High comfort
  • Easy assembly
  • Low energy costs

Characteristics

  • Intensive heat radiation at head level
  • Extremely heavy
  • Considerable assembly work
  • Limited comfort

Ceiling heating profiles

Air heating

Size ratio and operating weight

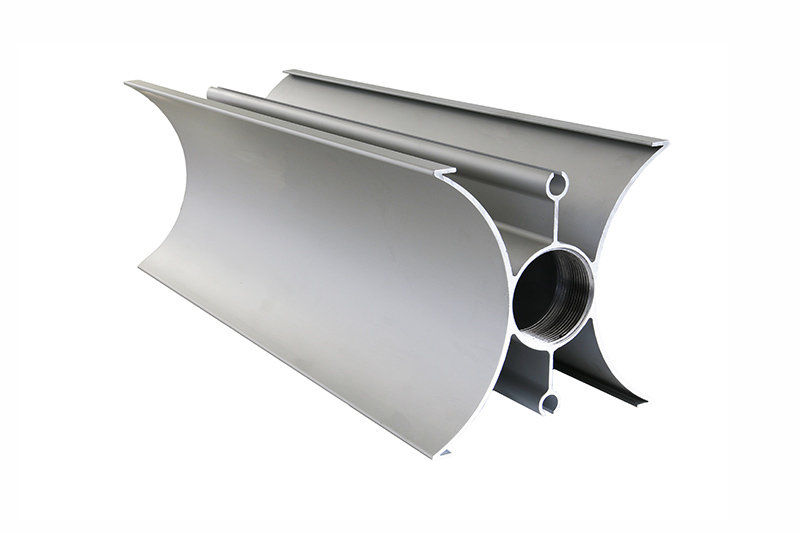

Ceiling radiator Klix-Coanda 600 – anodised
Ceiling radiant panel-600-4 With baked-on powder coating
Material
Extruded profile made of corrosion-resistant aluminium alloy
Radiant panels, welded to steel pipe register, thermal insulated upwards, without insulation if required
Flow tube
1 flow tube 5/4" internal thread – hemp + cement
4 flow tubes 1" press fittings or welding
Suspenion
1-point suspension M8 adjustable – oscillating chain
2-point suspension M8 fixed, oscillating chain
Weight
Operating weight 6 kg/m
Operating weight 15.4 kg/m
Assembly
50–70% shorter assembly times than for ceiling radiant panels
Complex assembly

Comparison of mounting features

Klix Coanda 750
Ceiling radiant panel 750 mm
Strand length
100 m
100 m
Strand width
0,16 m
0,75 m
Module length, max.
12 m
7,5 m
Number of tubes
1
5
Number of modules
9
14
Suspension points
33
68
Weight
910 kg
2850 kg
Concealed area
16 m²
75 m²

Installation options

Heating circuit

Flow and return in one profile

Planning example

Example: Warehouse with KLIX Coanda

L x B x H = 120 m x 26 m = 3.120 m² x 7 m = 21.840 m³

Based on radiant strip length
464 m
Halls – heat requirement
163 kW, corresponds to 52 W/m²
Heating medium temperatures 82,55 / 67,5 / 20°C
352 W/m
2 U-shaped heating circuits with 232 m
82 kW

Our service for you

  • Advice on system selection
  • Showing references
  • Provision of specialist information
  • Specialist seminars
  • Assembly briefing
  • Construction site inspection
  • Planning
  • Design
  • Offer
